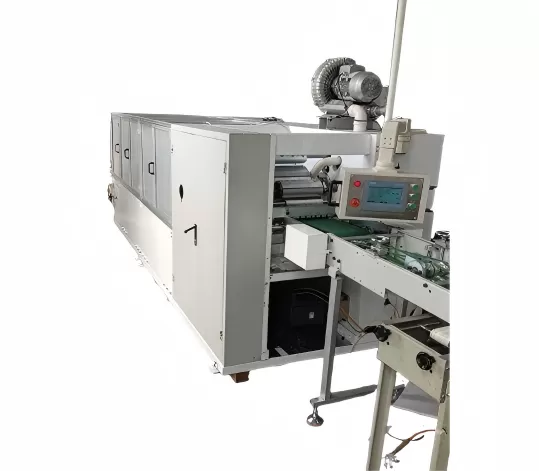

Our toilet seat cover manufacturing machine is designed to produce high-quality toilet seat covers using non-woven fabric, film, or tissue paper. With flexible folding options, such as 1/4, 1/8, and 1/16, our toilet seat cover machine meets diverse customer requirements for hygiene products used in public restrooms, hotels, and healthcare facilities.
What are the recommended materials for laminated toilet seat covers?
Paper: 32-38 gsm
Film: 2 gsm
What is the maximum width of raw material on the roll?
Maximum width: 650 mm
How many vertical folds can the machine handle?
Up to 4 vertical folds (W-shaped)
How many horizontal folds are possible?
Maximum 3 horizontal folds

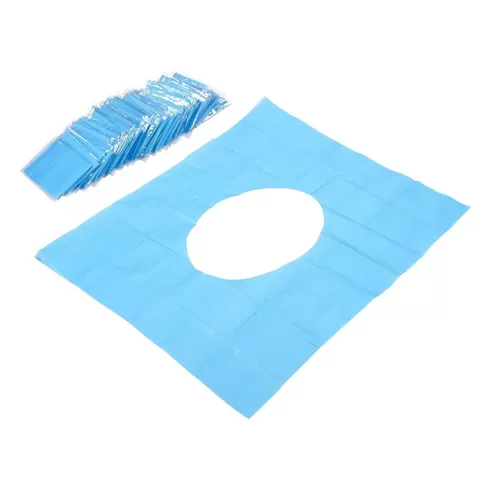

What are the folded sizes after 1/16 and 1/32 folding for a 400x600 mm seat cover?
1/16 fold: 100 x 150 mm
1/32 fold: 100 x 75 mm
How many adhesive points can be applied to the product?
Up to 4 adhesive points
Does the machine have edge control for raw materials?
Yes, edge control is available to maintain precise material positioning.
Can the distance between sticky dots be adjusted?
Typically fixed at 200 x 300 mm, but custom adjustments may be available.
How long do the cutting knives last?
Based on customer feedback, the cutting knives last 3-4 million cutting cycles before needing sharpening.
Which is better for laminated toilet seat covers: double-sided tape or hot melt glue?
Double-sided tape is easier to use but slightly more expensive.
Hot melt glue is cheaper but requires a more complex application process.
Most customers prefer double-sided tape as the cost difference is minimal for small tape usage.

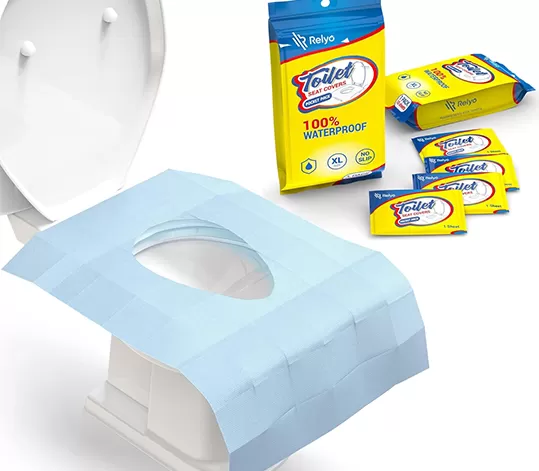

The Toilet Seat Cover Folding Machine by Atomic Ant is engineered for high-speed, hygienic, and precise folding of disposable toilet seat covers. Designed with full automation and cleanroom-compatible materials, it ensures consistent output and minimal manual intervention — ideal for large-scale production in hygiene product manufacturing.
1. High-Speed, Stable Operation
Equipped with servo-driven motors and synchronized conveyors, the machine runs smoothly at high speeds while maintaining precise folding accuracy. Advanced sensors monitor material flow to prevent jams or misalignment.
2. Multi-Functional Folding System
Supports a variety of folding styles — including ¼, ⅛, and W-fold patterns — to meet different packaging or end-user needs. Folding parameters can be easily adjusted through the control interface for flexible production.
3. Automatic Feeding & Cutting
The automatic roll-feeding unit ensures continuous operation without interruption. The integrated cutting module uses high-precision blades for clean, consistent edges, reducing material waste and improving appearance.
4. Intelligent Control System
A user-friendly PLC control system with touch-screen HMI allows operators to monitor production, adjust speed, and set folding specifications in real time. Recipe memory simplifies product changeovers.
5. Compact Layout & Easy Maintenance
The streamlined mechanical design minimizes floor space and simplifies cleaning. Quick-release components and accessible panels make maintenance safe and efficient.
6. Hygiene & Safety First
All contact parts are made of stainless steel or anodized aluminum for easy disinfection and long-term durability. Built-in safety guards and sensors ensure operator protection and reliable performance.
7. Customizable Options
Optional modules such as hole punching, embossing, or logo printing can be added to match your brand or product requirements. Atomic Ant engineers can customize machine size and configuration to suit your production line.
